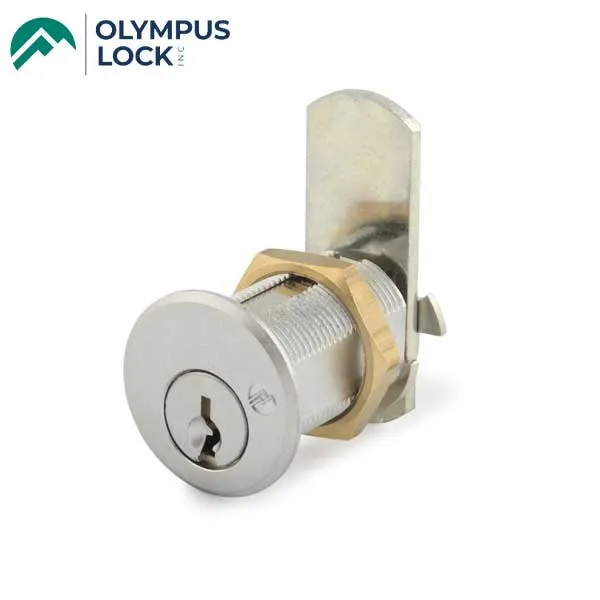

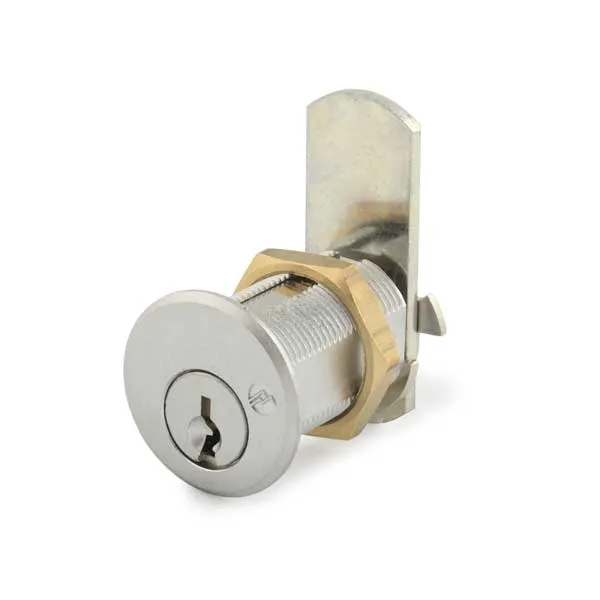

OLY-DCN1-26D-101
N Series National Keyway Cam Lock 1-1/16" Cyl. Length
• Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted
• Only 2 cams required—Ships with reversible straight and offset cams that meet requirements of all locking positions
• Easy rekeyability—Allows for a quick installation and increased productivity

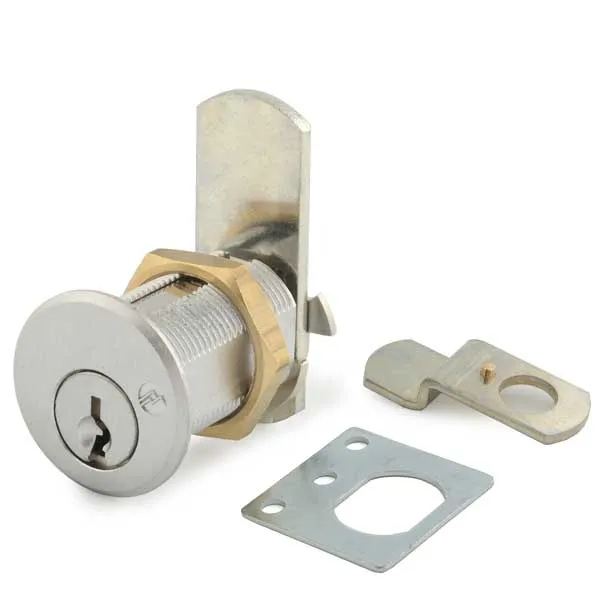

• Anti-rotation plate—Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security in particleboard applications
More Information Below
SPECIFICATIONS
| Function | Cam Lock |
| Cylinder | National N Series (equivalent to National D4291 4-pin ) Keyway w/ 2 keys per lock |
| Keyed Alike | KA 101 |
| Handing | Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted Includes 2 cams that work in all handings (door or drawer) |
| Rekeyable | Easily rekeyable via cylinder retainer clip |
| Anti-rotation plate | Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security in particleboard applications |
| Cams | 2 reversible cams work in all positions |
| Face | 1" face covers splintering, no additional trim ring required |
| Body | Zinc die cast |
| Dimensions |
1" without cam (see chart below) |
| Functions | Key removable in locked or unlocked position. |
| Finish | 26D - Satin Chrome |
| Includes |
2 nickel plated keys |
Specifications and Lengths
