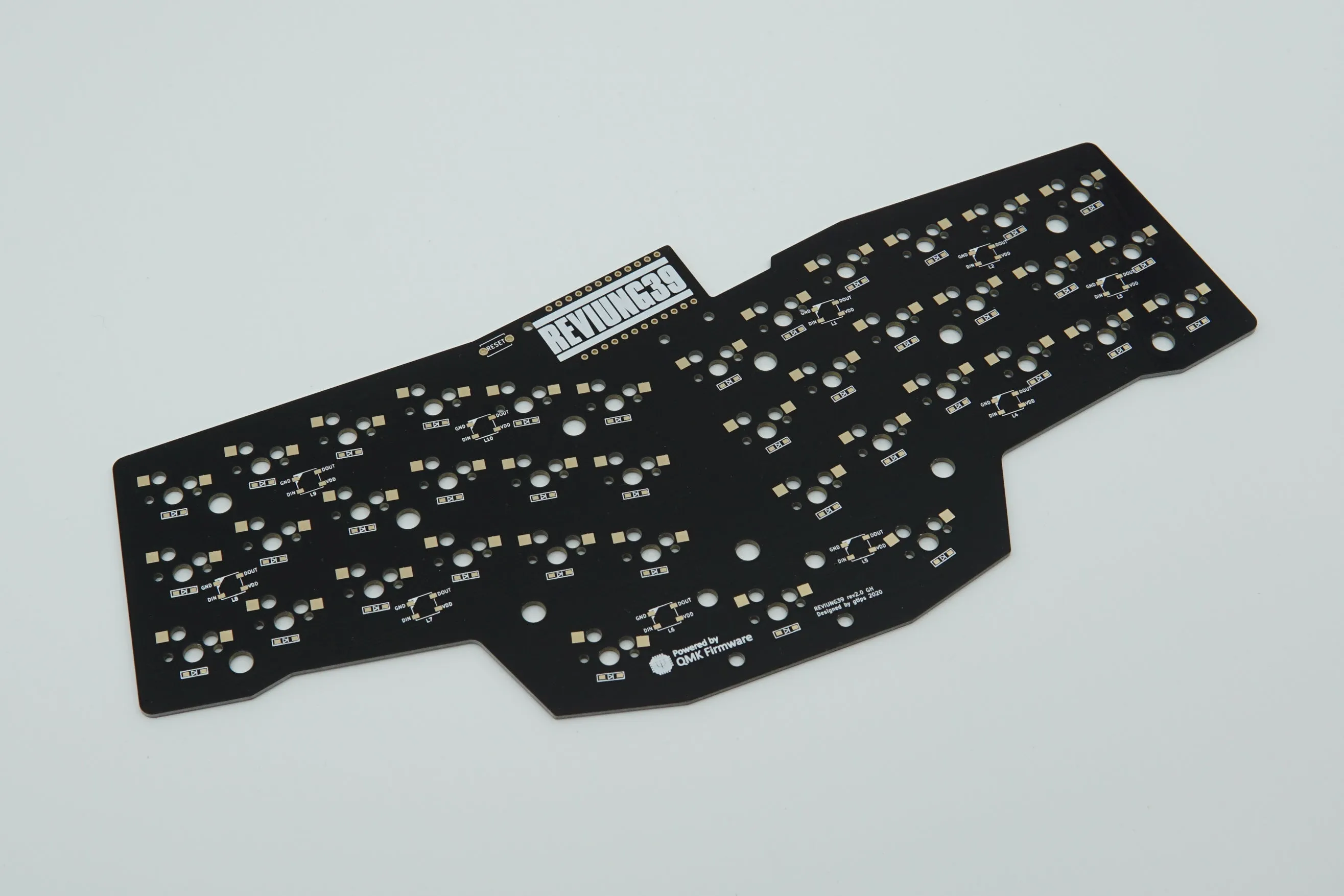

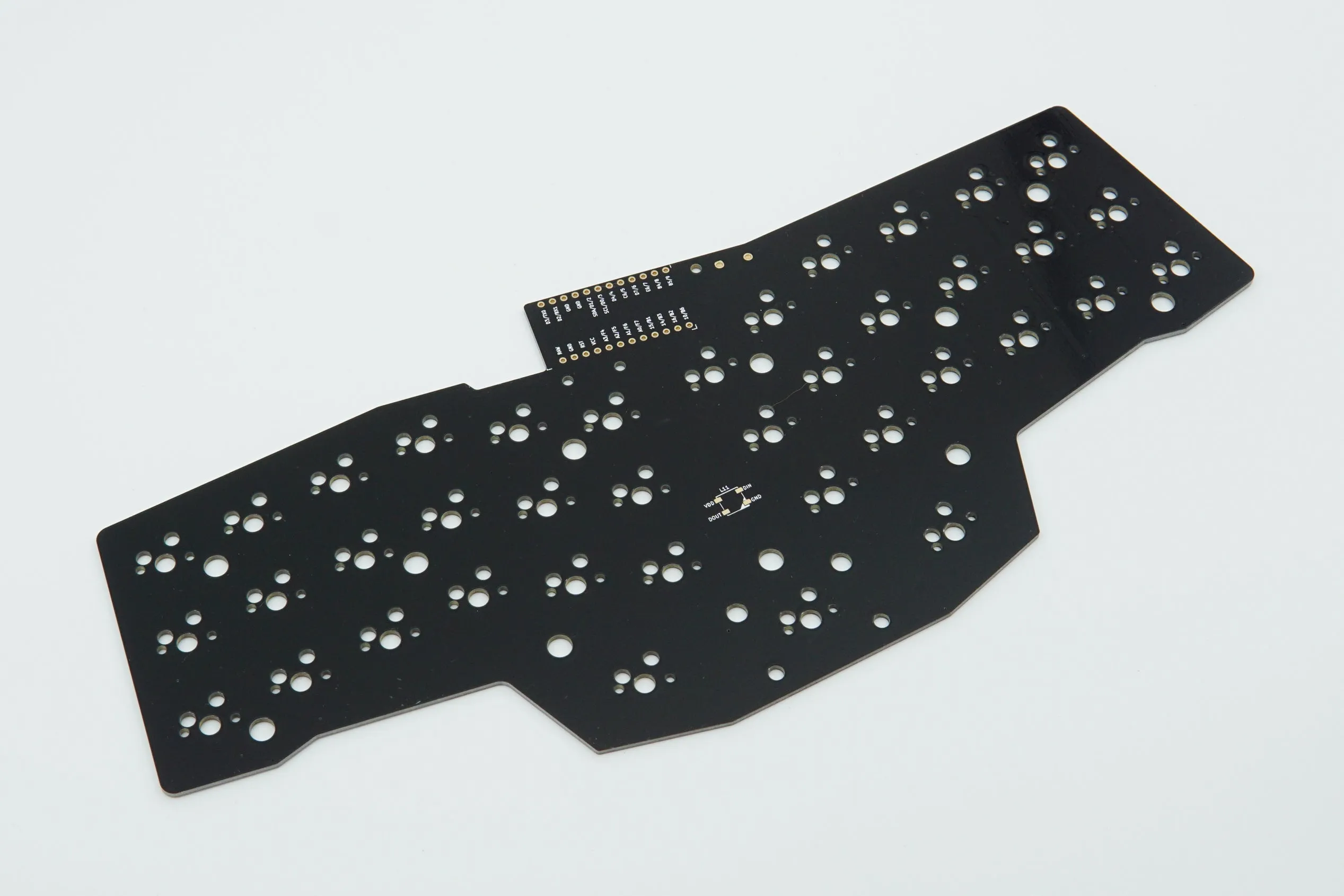

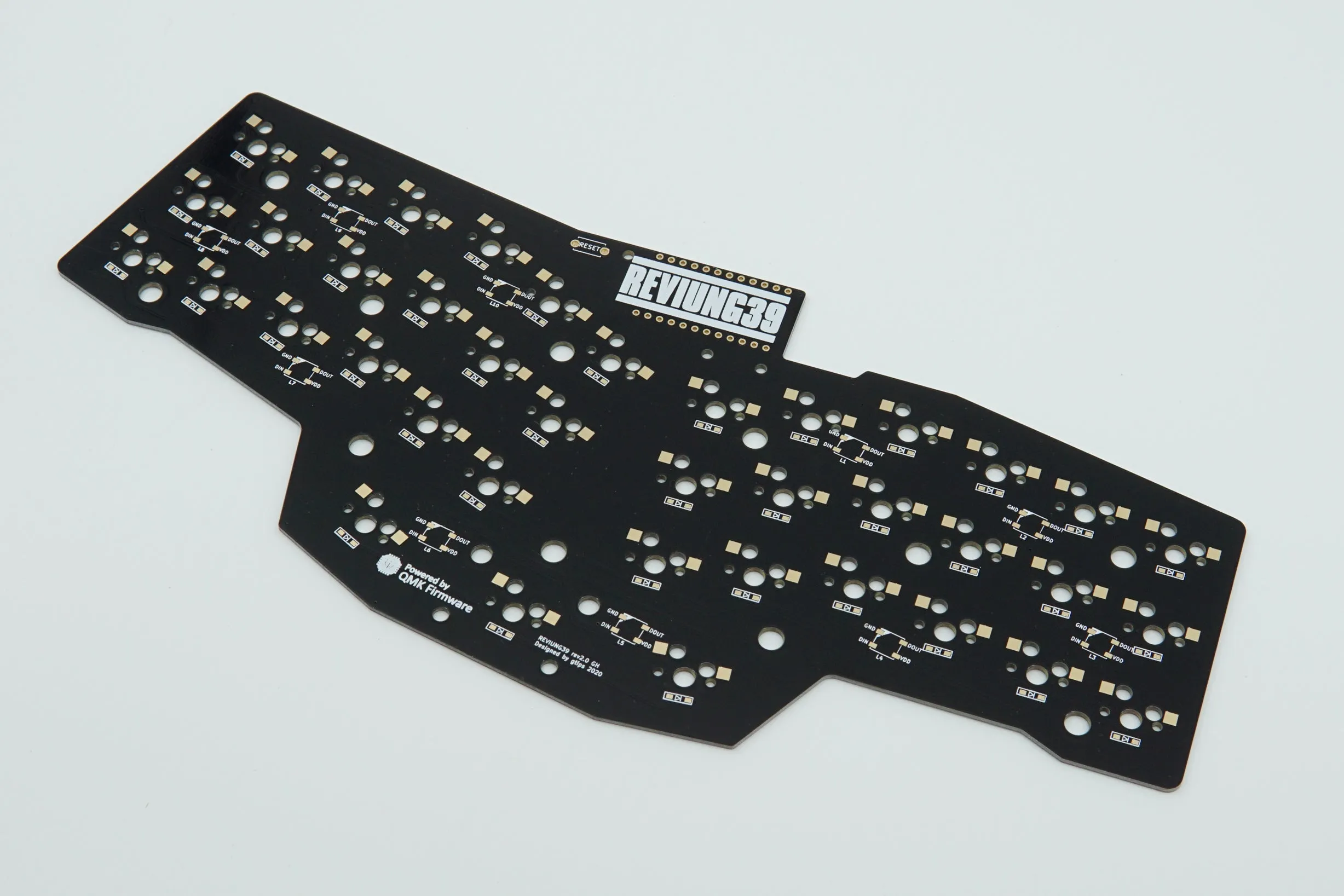

The Reviung39 MKII keyboard is a 39 key layout featuring a 3x12 grid with 3 additional thumb keys. The PCB has footprints for Kailh MX Hotswap sockets and allows for the use of a 2u stabilizer for the center key in the thumb cluster. The Reviung39 also includes support for RGB LEDs. There are 10 downward facing LEDs for underglow support and a single upward facing LED for additional accent lighting.
The Reviung39 keyboard was designed by keyboard designer . Additional information about the Reviung39 keyboard along with the source files from the designer can be found on the . QMK key mappings and firmware can be found .

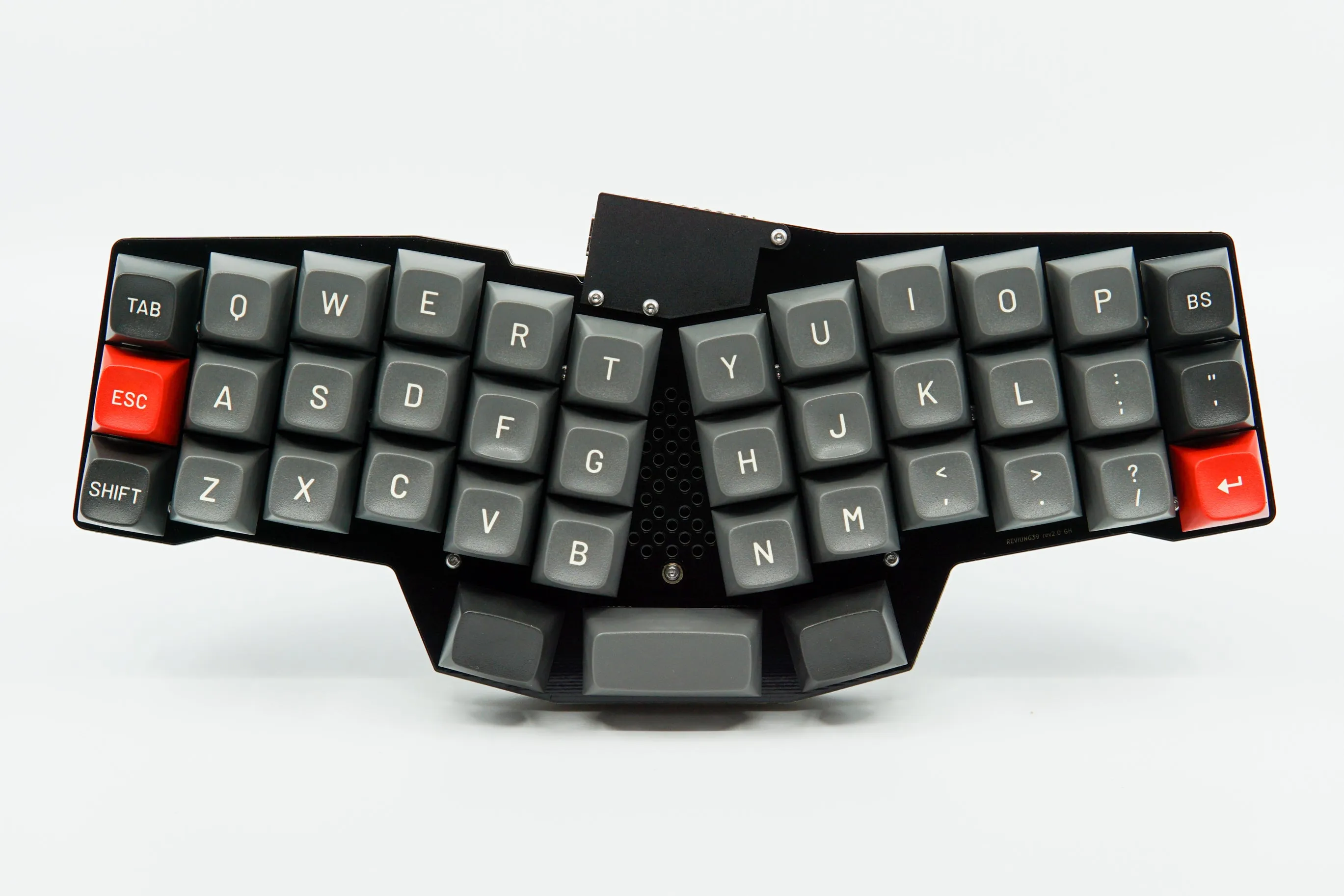

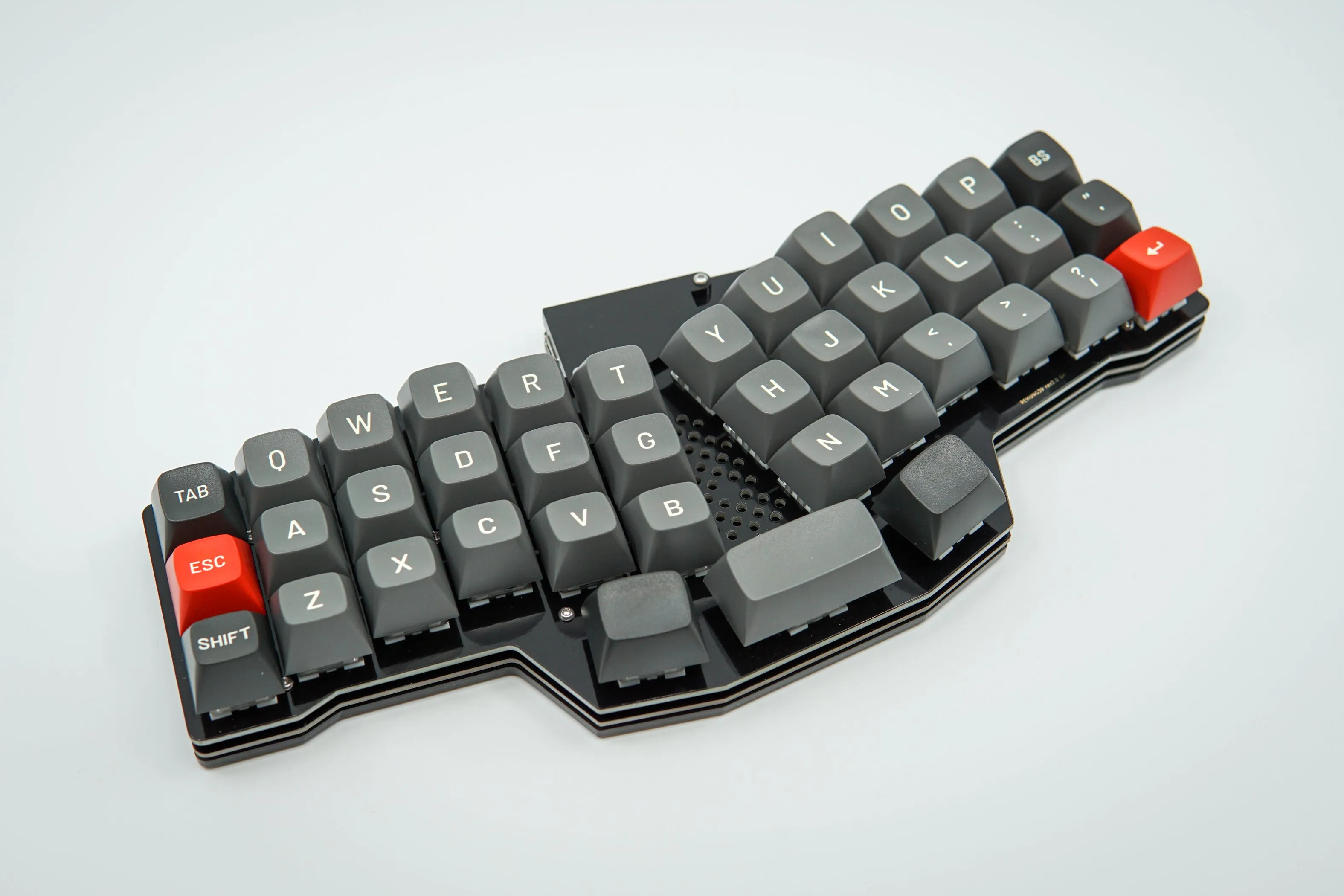

Photos of the completed Reviung39 kit are for demonstration purposes only. Please note that this kit does not include switches or keycaps.
Options
Kit - Kits must be assembled in order to be used. The following components are included with each kit.
| 1 | PCB |
| 1 | Reset Switch |
| 39 | Surface Mount Diodes |
| 39 | Kailh MX Sockets |
| 11 | RGB LEDs |
| 1 | Black FR4 Switch Plate |
| 1 | Bottom Plate |
| 11 | Standoffs |
| 22 | Screws |
Additional Notes
The following components are required in order to have a completed keyboard.
| 1 | Pro Micro or equivalent |
| 39 | Cherry MX switches |
| 39 | Keycaps |
| 1 | USB Cable |
